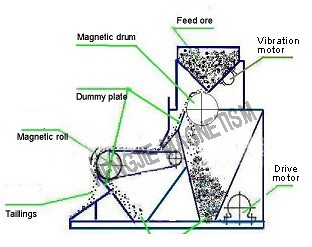

CTG series drum roll permanent magnetic separator remove weak magnetic impurities for granular or powdered materials, used in ceramics, glass, refractories, abrasives etc non-metallic mineral purification, as well as hematite, limonite ore and other weak magnetic dry preselection. Features: * Permanent magnetic roller and drum reasonable combination to better remove iron. * Drum magnetic poles using the new compensation magnetic pole system, have a higher magnetic field strength, suction stronger. * Drum magnetic system can be made for roll-style,the efficiency is greatly improved. * Drum surface magnetic field can reach 7000Gs. * Roller and drum speed frequency adjust and adapt wider size and production requirements. * Magnetic roller using composite magnetic system, the magnetic field strength attain to 15000Gs. * The magnetic roller conveyor belt is made in special material with good wear resistance. * Controlled feeding system ensure the uniformity of the material flowing through the magnetic field zone. * Automatic cleaning weakly magnetic oxides, can protect a long trouble-free operation. Working principle:
![](../uploadfile/20140220/20140220170739214.jpg)

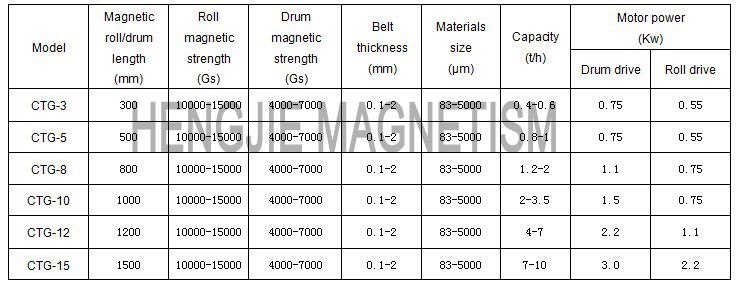

Parameter table:
![](../uploadfile/20140220/20140220171304923.jpg)
|
