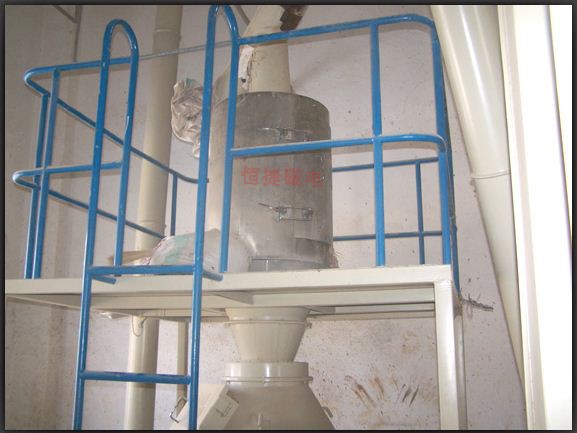

RCYT Series Bullet separator is designed to remove relative lager pieces of iron tramps like nuts, bolts and nails to avoid damage to the downstream machines. This equipment is usually installed in gravity and pneumatically pipelines. It is applicative to all the powder and granular products which is dry. Such as grain, powder and feed etc.
Features:
  1. Finishing: Well polishing and welding to meet food grade. The housing can be sand blasted
  2. Material of shell: SS304, SS316 and SS316L
  3. Working Temperature: Our ordinary working temperature is 80 centigrade, but if demand, we can make up to 350 centigrade to meet your special applications
  4. Magnetic strength: offering 1000 to 12000gauss for chosen from.
  5. Customer designs, specifications can be fulfilled.

Overall Dimension Diagram:

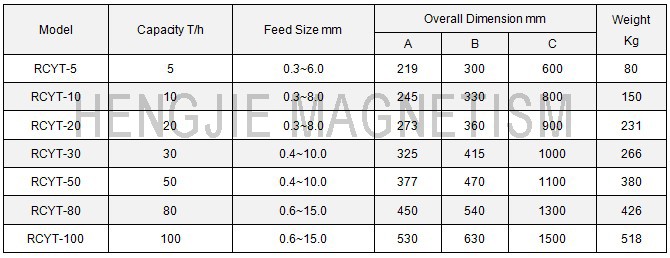

Technical Parameter Table:

Remark:
The magnetic intensity of the product has: 1000GS,2000GS, 3000GS, 4000GS, 5000GS, 6000GS, 7000GS,8000GS,12000GS. Must be decided when ordering.
