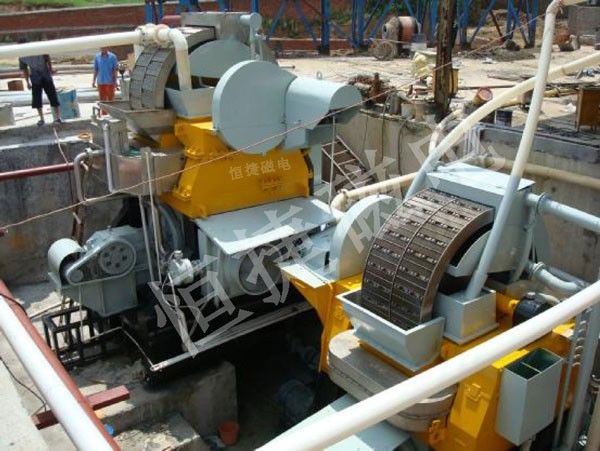

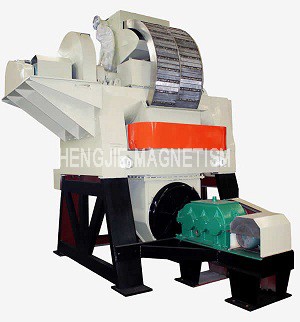

LHGC vertical loop high gradient wet magnetic separator widely used in weak magnetic metal ore,such as: hematite, limonite, siderite, chromite, ilmenite, wolframite, tantalum-niobium ore etc, as well as used for remove the iron impurities in non-magnetic materials, non-metallic minerals such as: quartz, feldspar, nepheline, fluorite, sillimanite, spodumene, kaolin, etc. Separating loop vertical rotate, concentrate unloading by recoil way, and is equipped with the pulsating device,It work out the problem of materials easy block; The magnetic media is patented product by company's self-developed, can produce higher magnetic field gradient, so that produce a greater magnetic force, and to improve the separation efficiency. This product have advanced product structure, reliable work, easy operation and maintenance, long duty cycle, high separation efficiency, with a wide range of adaptability to fluctuations of ore grade.

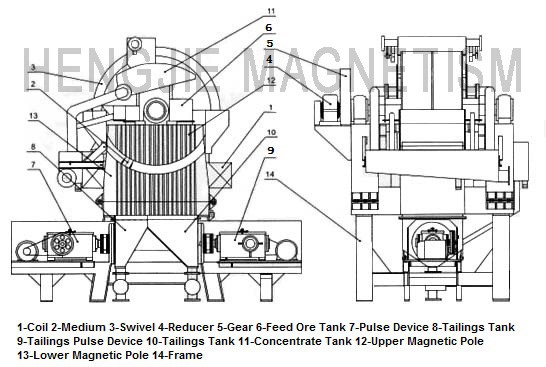

Structural drawings:

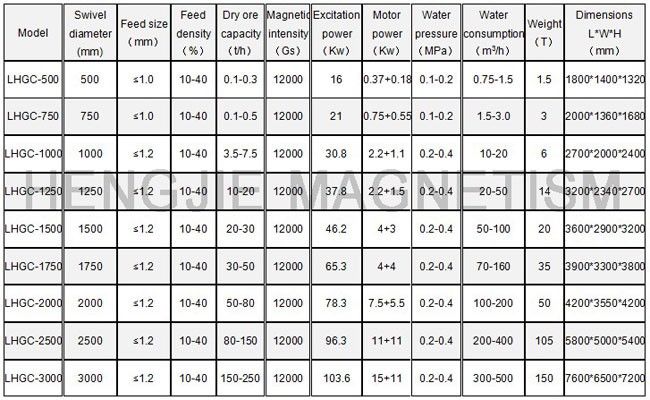

Parameter table:
