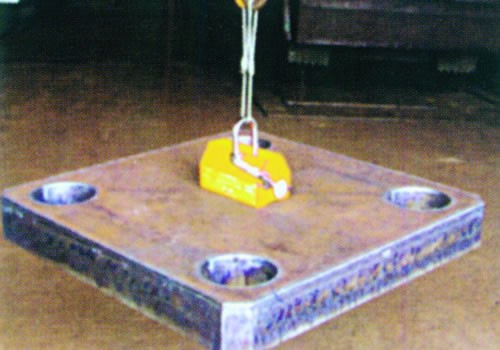

YX Series Permanent-magnet lifter has special strong magnetic circuit produced by Nd-Fe-B magnetic materials. On and off of the magnetic circuit is controlled by turning the handle. Features: not using electricity, compact, light-weight, huge attraction power, convenient and safe for operation and never weaken magnetic power. It is widely used to lift and transport magnetic materials, such as steel plates, steel ingot in factories, docks, warehouses and transportation.
Features:
  1.Adopt computer simulation magnetic circuit design, with reasonable magnetic field distribution and farther permeability depth.
  2.This equipment is more simplified than lifting electromagnet , without energizing coils and cooling system.
  3.Low energy consumption and low failure rate
  4.Easy to operate, and safe.
  5.Each technical index is according to standard JB/T8711-2006.

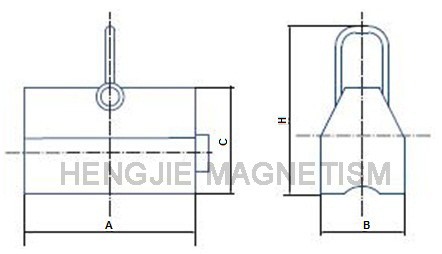

Overall Dimensions Diagram:

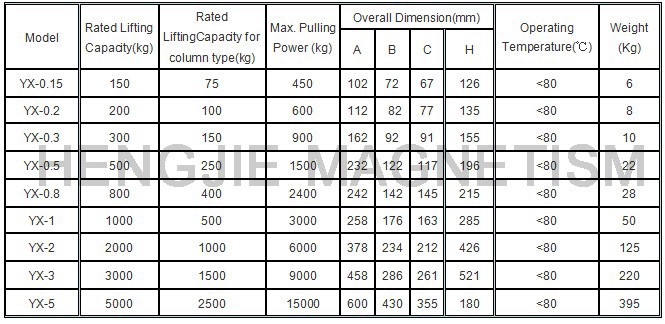

Main Tech Data:
