PCH Series Hammer Crusher is a kind of crusher that impact rotor with a hammer. Hammer can not only rotate with the rotor, but also around the hammer pin rotation.After materials into the crusher,the materials are broken by high-speed rotation of hammer in the crushing chamber, the crushed material obtained kinetic energy from the hammer, high speed toward to the broken plate,this is first crushing, then fell sieve board, by the hammer cut, crush, grind, and collision between the material, the material can be further broken, and discharge to outside through the sieve, the debris that can not be broken push metal collection device by the hammer, periodically removed by the operator.
  Hammer crusher is ideal for crushing various brittle materials such as: coal, gangue, coke, slag, red sandstone, shale, loose limestone.the material extruding strength not more than 150Mpa, surface water should not exceed 8% -11%, for non-adhesive material, the surface moisture can be controlled within 15%.

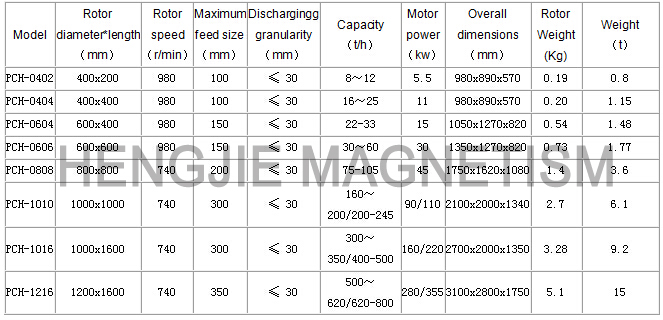

Technical parameter table:
