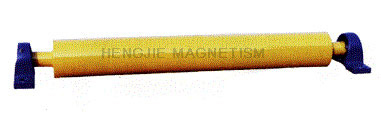

WCG series non-magnetic carrier roller is a straight line non-magnetic roller. It is made uses special non-magnetic materials, installation below the conveyor belt corresponding bottom of suspended separator, non-magnetic roller installed above the belt conveyor idlers 50-150mm, and supporting the use of suspended separator, when the material through the top of non-magnetic roller, the material is evacuation status, the iron impurities is exposed in the middle or the bottom of material, can help separator effectively adsorb iron impurities.

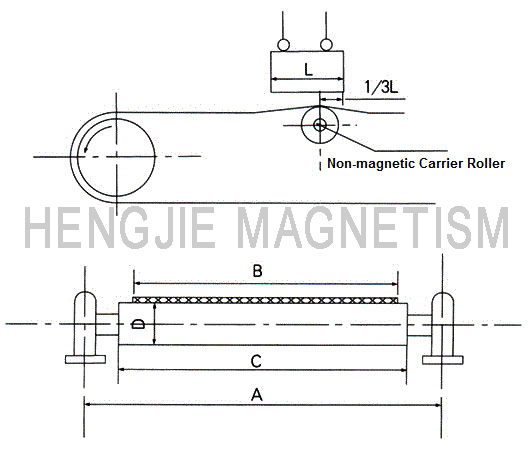

Overall Dimension Diagram:
![](../uploadfile/20140217/20140217145745884.jpg)

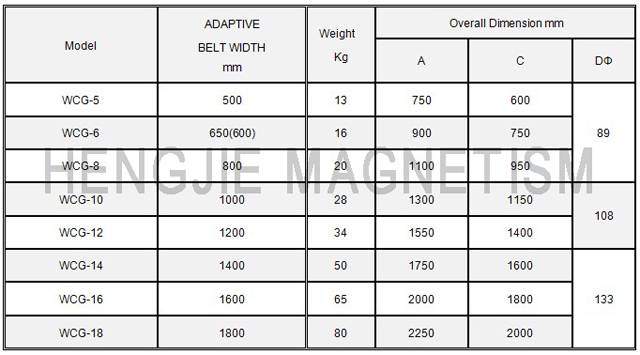

Technical Parameter Table:
![](../uploadfile/20140217/20140217145757847.jpg)
|
