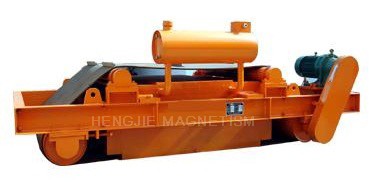

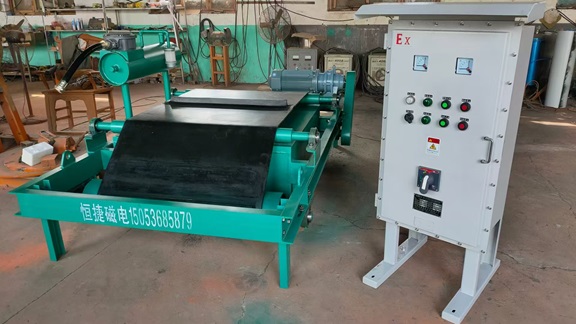

RCDF series self-cleaning oil cooled electromagnetic separators assembled the drive motor, roller, and unloading iron belt with scraper, etc. The internal coil be cooled by transformer oil, the entire seal structure, magnetic force large, dustproof, rainproof, corrosion resistance, continuous work and long service life, It can effective protect roller presses, crushers and other machinery.

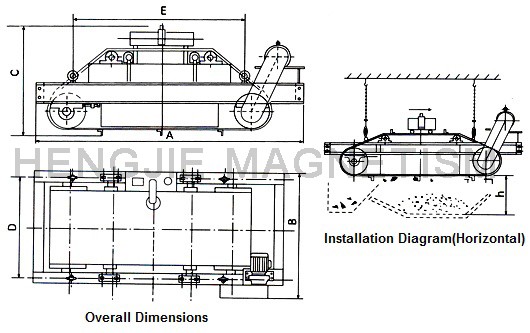

Dimensional sketches and installation sketches:

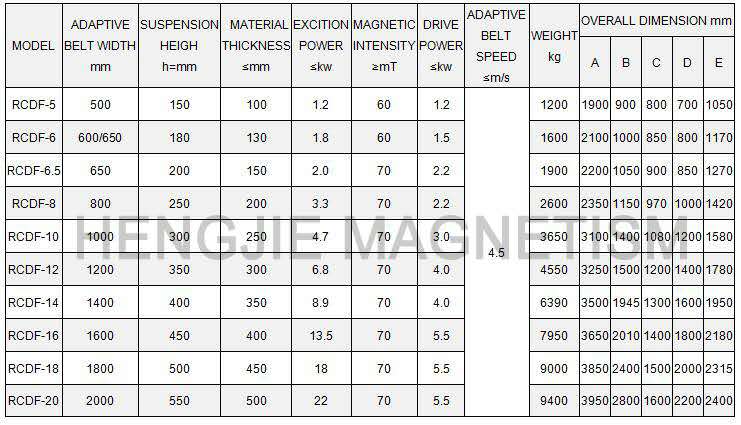

Parameter table:

 This magnetic separator have high intensity model: T1 magnetic strength is 90mT, T2 magnetic strength is 120mT ,T3 magnetic strength is 150mT.
